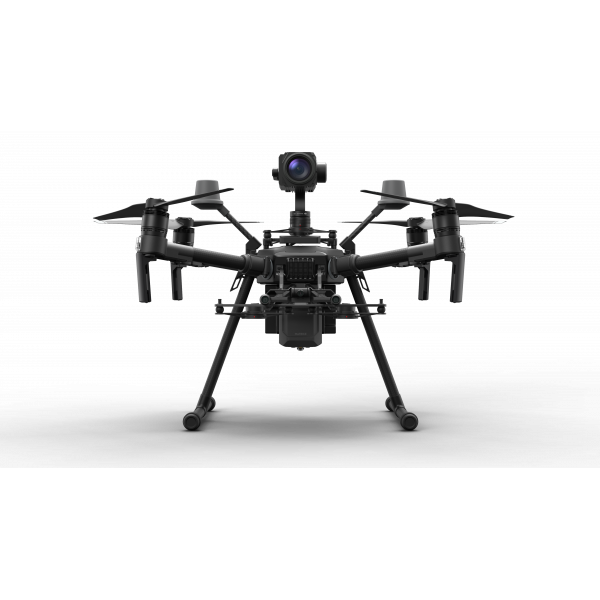

MATRICE 210 RTK V2

BUILT TO ENDURE.
ENGINEERED TO ADAPT.

The ultimate platform for aerial productivity combines a rugged design and simple customizability to work as a solution for a variety of industrial applications. Improvements to the M200 Series V2 enhance intelligent control systems, flight performance, and add flight safety and data security features.

• IP43
• OcuSync 2.0
• FPV Camera
• Anti-collision Beacon
• Discreet Mode
• Mobile SDK Compatibility
• DJI SkyPort Compatibility
• TimeSync
• All M200 V2 Features
• Onboard SDK Compatibility
• Power Onboard Devices
• Power Onboard Devices
• Built-in High-performance RTK Modules
• D-RTK 2 Mobile Station Compatibility

Includes

• Matrice 210 RTK Aircraft
• D-RTK 2 Ground Station
• Cendence S Controller
• (2) TB55 Batteries
• CrystalSky 7.8" UltraBright Display

Compatible Payloads

ZENMUSE XT2, ZENMUSE X5S, ZENMUSE X7, ZENMUSE Z30, ZENMUSE X4S, ZENMUSE XT, Third Party Payloads
Intelligent Controls

Transmission
Enjoy a more reliable and stable flight with the new OcuSync 2.0 system, which supports automatic dual frequency band switching and extends flight range to up to 8km.

Calibration
When multiple payloads or third-party payloads are installed, users can readjust the drone’s center of gravity in the DJI Pilot app, enhancing flight performance and safety.

Data Accuracy
The TimeSync system continuously aligns the flight controller, camera, GPS module, RTK module for the M210 RTK V2, as well as payloads or onboard accessories. The position data is fixed to the center of the CMOS for precise geotagging when using DJI payloads.

Discreet Mode
When the situation calls for unobtrusive drone operations, especially at night, all lights can be completely turned off in the DJI Pilot app.

Safe and Secure

1. AES-256 Encryption
   The AES-256 encryption keeps your data transmission secure so you can be sure that your critical information stays safe.
2. Obstacle Avoidance
   A robust FlightAutonomy system with front, bottom and upper sensors detects and avoids obstacles while enabling precision hovering so that you can fly with confidence.
3. Anti-Collision Beacon
   Equipped with new top and bottom anti-collision beacons, the V2 drones are visible at night or in lowlight conditions, making operation in less than ideal conditions safer.
4. DJI AirSense
   With a built-in ADS-B receiver, the DJI AirSense technology enhances airspace safety by automatically providing the operator with real-time information about nearby airplanes and helicopters

Always Ready

1-Click Upgrade
The remote controller, drone, payloads, RTK module, and RTK base station can now be upgraded simultaneously with just 1-click in DJI Pilot or DJI Assistant 2.

Dual-Battery System
The self-heating battery system allows a maximum flight time of 38 minutes and an operating temperature range of -20 to 50°C.

Optional Accessories to Enhance Performance

Manifold 2
Turn your vision into reality using DJI’s onboard computer – the Manifold 2. Leverage its flexibility and expandability to build customized drone solutions and bring your robotics operations to the edge.


Upward Gimbal Connector
Connect any compatible payload above your M210 V2 and M210 RTK V2 drones using the upward gimbal connector to capture data from a different aerial perspective.


External GPS Module
Enhance positioning accuracy by using an external GPS module, especially when using an upward gimbal on the M210 V2, or when attaching onboard devices or payloads.
